The ideal controller to start DJing
• Connect it to the USB-C port on your PC/Mac computer
• Mix with Serato DJ Lite and DJUCED®
• Learn how to beatmatch manually by looking at the built-in dynamic light guides
• Separate the sound into stems (vocals/instrumentals) to remix tracks
• Mix and scratch, have fun and improve your skills!
• Beatport, Beatsource, TIDAL and SoundCloud streaming services
• Broadcast your performances using the included virtual sound card
THE GOLD STANDARD FOR 2-DECK MIXING
• Built-in audio: Master (speakers) and monitoring (headphones) outputs
• Decks: 2 Play, Cue, Sync, Shift sections / 2 jog wheels / 2 x 4 pads with 4 modes
(Hot Cue, FX, Loop, Sampler) / 2 tempo faders / 2 x 2 stems buttons
• Mixing: 1 crossfader , 2 mixers (3-band EQ, Filter, Volume), monitoring
controls, master volume
STEMS
Split up tracks into instrumental and vocal stems
• Create mashups by playing the vocal from track A over the instrumental
from track B
• Create transitions by mixing the instrumental of the next track over the
vocal of the one that’s playing
BEATMATCH GUIDE
Built-in light guides: no need to look at a screen
• Tempo guide: indicates where to move the tempo fader
• Beat Align guide: indicates which direction to turn the jog wheel
DJUCED® mixing and performance DJ software from Hercules
• Assistant: suggests the best upcoming tracks, so that you’ll always stay
inspired
• Stems: separate the vocal and instrumental parts for a different kind of mixing
• Precise audio engine and full DJing features
Serato DJ Lite with features for learning to mix and scratch
• Use stems to separate a cappella and instrumental parts, and create mashups
• Includes a free 2-week trial of Serato DJ Pro
• Serato DJ Lite is based on the same technology as Serato DJ Pro
Compatible with streaming services: mix millions of tracks from Beatport LINK,
Beatsource LINK, SoundCloud Go+ and TIDAL (+ Apple Music in Serato DJ).
Hercules Official Music: royalty-free tracks that you can mix with on any media.
Virtual sound card: the virtual sound card establishes a virtual link between the
DJ controller’s master output and the broadcasting app’s audio input.
BOX CONTENTS:
DJControl Inpulse 200 MK3
Braided USB cable attached to the controller
DJUCED® and Serato DJ Lite licenses
Instruction manual
Warranty information leaflet
DIMENSIONS/WEIGHT:
Size: 12.6 x 7.7 x 1.9“ / 320 x 195 x 49 mm
Weight: 2.0 lb / 0.9 kg
Jog wheel diameter: 3.5” / 90 mm
CONNECTIONS:

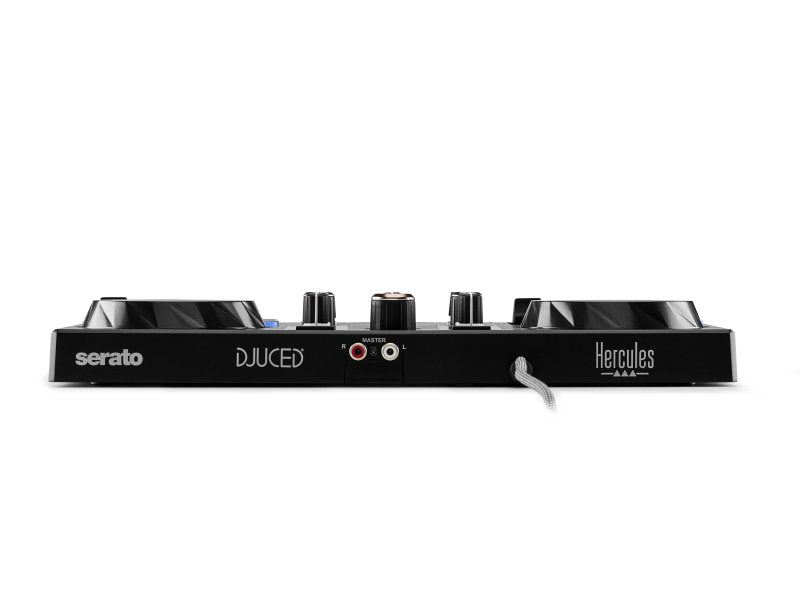

Master output for speakers: 2 RCA jacks
Headphones/monitoring output: 1/8” / 3.5 mm stereo mini-jack
Male USB-C connector (to connect to the computer)
CONTROLS:
Mixing controls:
1 filter knob, 3 EQ knobs, 1 volume fader per deck
Crossfader, master volume knob, headphones volume knob
Controls per deck:
Jog wheel: touch detection in vinyl mode
4 pads × 4 modes (Hot Cue, FX, Loop, Sampler)
Stems section (instruments/vocals), tempo fader
Browser controls:
Browser knob + 2 Load buttons + Assistant button
BEATMATCH GUIDE:
Tempo: light guide alongside each tempo fader
Beat Align: light guide below each jog wheel
ASSISTANT:
Assistant: DJUCED® suggests tracks from your library that match the one playing in terms of BPM, key and energy
SOFTWARE:
DJUCED®
Serato DJ Lite
VIRTUAL SOUND CARD:
This virtual sound card establishes an audio input that broadcasts the master output. Connecting it virtually to broadcasting software, such as OBS, lets you stream the DJ performance online in real time.
